Monte Carlo Methods

Integration and Optimization

R Packages

Code
library(tidyverse)

Monte Carlo Integration

  • Monte Carlo Integration

  • Importance Sampling

  • Monte Carlo Optimization

  • Toy Collector’s Problem

Monte Carlo Integration

Monte Carlo Integration is a numerical technique to compute a numerical of an integral.

It relies on simulating from a know distribution to obtain the expected value of a desired function.

Integration

Integration is commonly used to find the area under a curve.

Expectation

Let \(X\) be a continuous random variable:

\[ E(X) = \int_{X}xf(x)dx \]

\[ E\{g(X)\} = \int_Xg(x)f(x)dx \]

Strong Law of Large Numbers

As \(n\rightarrow \infty\) (ie simulate a large number of random variables):

\[ \bar X_n \rightarrow E_f(X) \]

where

\[ \bar X_n \rightarrow = \frac{1}{n}\sum^n_{i=1}X_i \]

Strong Law of Large Numbers

\[ \bar X_n^{(g)} \rightarrow E_f\{g(X)\} \]

where

\[ \bar X_n^{(g)} \rightarrow = \frac{1}{n}\sum^n_{i=1}g(X_i) \]

The Expected Value of a Normal Distribution

\[ E(X) = \int^{\infty}_{-\infty}\frac{x}{\sqrt{2\pi\sigma^2}} \exp\left\{-\frac{(x-\mu)^2}{\sigma^2}\right\} dx = \mu \]

Variance of a Normal Distribution

\[ Var(X) = E[\{X-E(X)\}^2] \\= \int^{\infty}_{-\infty}\frac{\{x-E(X)\}^2}{\sqrt{2\pi\sigma^2}} \exp\left\{-\frac{(x-\mu)^2}{\sigma^2}\right\} dx = \sigma^2 \]

Using Monte Carlo Integration to obtain expectations

  1. Simulate from a target distribution \(f\)
  2. Calculate the mean for the expected value

Using Monte Carlo Integration

\[ X \sim N(\mu, \sigma^2) \]

Code
x <- rnorm(100000, mean = -2, sd = 3)
mean(x)
#> [1] -2.001199
Code
var(x)
#> [1] 9.030126

Gamma Distrbution

\[ X \sim Gamma(3,4) \]

Beta Distribution

\[ X \sim Beta(2,3) \]

\(\chi^2(p)\)

\[ X \sim \chi^2(39) \]

Finding the Probability

Integration is commonly used to determine the probability of observing a certain range of values for a continuous random variable.

\[ P(a < X < b) \]

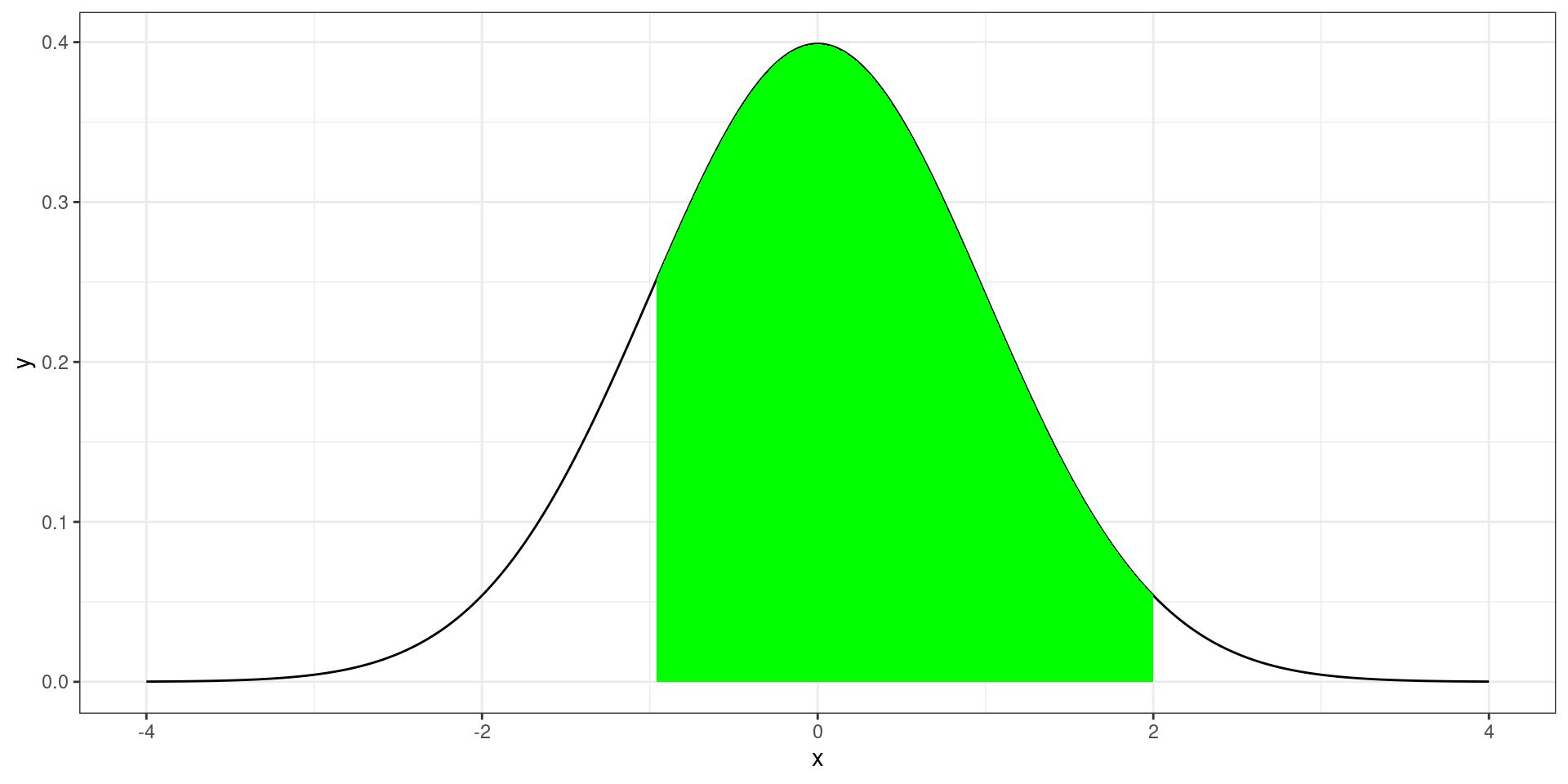

Graphical Setting

Code
x <- seq(-4, 4, length.out = 1000)
dt_two<-function(x){
            y <- dnorm(x)
            y[x< -1 | x>2] <-NA
            return(y)
        }
x |> (\(.) tibble(x = ., y = dnorm(.)))() |>
  ggplot(aes(x, y)) +
    geom_line() +
    stat_function(fun = dt_two, geom = "area", fill = "green") +
    theme_bw()

Finding the Propbabilities of a Random Variable

For a given random variable \(X\), finding the probability is the same as

\[ E\{I(a<X<b)\} = \int_X I(a<X<b) f(x) dx \]

where \(I(a<X<b)\) is the indicator function.

Indicator Function

\[ I(a<X<b) = \left\{\begin{array}{cc} 1 & a<X<b\\ 0 & \mathrm{otherwise} \end{array} \right. \]

Finding the Probability

\[ \begin{align} E\{I(a<X<b)\} & = \int_X I(a<X<b) f(x) dx\\ & = \int_a^b f(x) dx\\ & = P(a < X < b) \end{align} \]

Monte Carlo Probability

  1. Simulate from a target distribution \(f\)
  2. Calculate the mean for \(I(a<X<b)\)

Normal RV Example

Let \(X\sim N(4, 2)\), find \(P(3 < X < 6)\)

Code
pnorm(6, 4, sqrt(2)) -  pnorm(3, 4, sqrt(2))
#> [1] 0.6816003

Using Monte Carlo Methods

Code
x <- rnorm(1000000, 4, sqrt(2))
mean((x > 3 & x < 6))
#> [1] 0.68179

Logistic RV Example

Let \(X\sim Logistic(3, 5)\), find \(P(-1 < X < 5)\)

Weibull RV Example

Let \(X\sim Weibull(1, 1)\), find \(P(2 < X < 5.5)\)

F RV Example

Let \(X\sim F(2, 45)\), find \(P(1 < X < 3)\)

Monte Carlo Integration

Monte Carlo Integration can be used to evaluate finite-bounded integrals of the following form:

\[ \int^b_a g(x) dx \] such that \(-\infty <a,b<\infty\).

Monte Carlo Example Integration

\[ \int^1_{0} \{\cos(50x) - sin(20x)\}^2dx \]

Monte Carlo Example Integration

Let \(X \sim U(0,1)\) with \(f(x) = 1\), then

\[ E[\{\cos(50x) - sin(20x)\}^2] =\int^1_{0} \{\cos(50x) - sin(20x)\}^2dx \]

Using Numerical Integration

Code
ff <- function(x){
  (cos(50*x)-sin(50*x))^2
}
integrate(ff,0,1)
#> 0.9986232 with absolute error < 9.5e-11

Monte Carlo Example Integration

Code
x <- runif(10000000, 0, 1)
mean((cos(50*x)-sin(50*x))^2)
#> [1] 0.9993568

Monte Carlo Example Integration

\[ \int^{15}_{10} \{\cos(50x) - sin(20x)\}^2dx \]

Monte Carlo Integration

Let \(X \sim U(10,15)\) with \(f(x) = 1\), then

\[ E[\{\cos(50x) - sin(20x)\}^2] = \\ \int^{15}_{10} \frac{1}{5} \{\cos(50x) - sin(20x)\}^2dx \]

Monte Carlo Example Integration

\[ \int^{15}_{10} \{\cos(50x) - sin(20x)\}^2dx = \\ 5 * E[\{\cos(50x) - sin(20x)\}^2] \]

Monte Carlo Example Integration

Code
ff <- function(x){
  (cos(50*x)-sin(50*x))^2
}
integrate(ff,10,15)
#> 4.993274 with absolute error < 1.1e-06

Monte Carlo Example Integration

Code
x <- runif(10000000, 10, 15)
mean(ff(x)) * 5
#> [1] 4.994512

Monte Carlo Integration Algorithm

Given: \[ \int_a^b g(x) dx \]

  1. Simulate \(n\) value from \(X \sim U(a,b)\)
  2. Take the average, \(\frac{1}{n}\sum^{n}_{i=1}g(x_i)\)
  3. Multiply the average by \(b-a\): \(\frac{b-a}{n}\sum^{n}_{i=1}g(x_i)\)

MC Examples

\[ \int_0^{2} e^{-x^2/2} dx \]

Importance Sampling

  • Monte Carlo Integration

  • Importance Sampling

  • Monte Carlo Optimization

  • Toy Collector’s Problem

Importance Sampling

Importance sampling is an extension of Monte Carlo integration where it addresses the limitations of large variance of the expected value and the bounds required in integrals.

This is done by simulating from a random variable that has an infinite support system.

Importance Sampling

Let’s say we are interested in finding the numerical value of the following integral:

\[ \int_{-\infty}^\infty g(x) dx \]

Importance Sampling

If we view the integral as an expectation of an easily simulated random variable, we can compute the numerical value.

Let \(X\) be a random variable \(f\), then

\[ \int_{-\infty}^\infty g(x) dx = \int_{-\infty}^\infty \frac{g(x)}{f(x)} f(x) dx = E\left\{\frac{g(x)}{f(x)}\right\} \]

Importance Sampling

Since the integral is the expectation of \(X\), it can be obtained by taking the mean of the simulated values applied to \(g(x)/f(x)\).

Example

\[ \int_{-\infty}^{\infty} e^{-x^2/2} dx \]

Example

Code
x <- rt(1000000, df = 1)
f2 <- function(x){
  exp(-x^2/2) / dt(x, 1)
}
mean(f2(x))
#> [1] 2.505336
Code
sqrt(2*pi)
#> [1] 2.506628

Choosing \(f(x)\)

Choose a value \(f(x)\) that follows a shape close enough to \(g(x)\) that has the same bounds as the integral.

Example

\[ \int_{-\infty}^{\infty} e^{-(x-4)^2/10} dx \]

Example

\[ \int_{0}^{\infty} x^3 e^{x/2} dx \]

Monte Carlo Optimization

  • Monte Carlo Integration

  • Importance Sampling

  • Monte Carlo Optimization

  • Toy Collector’s Problem

Optimization

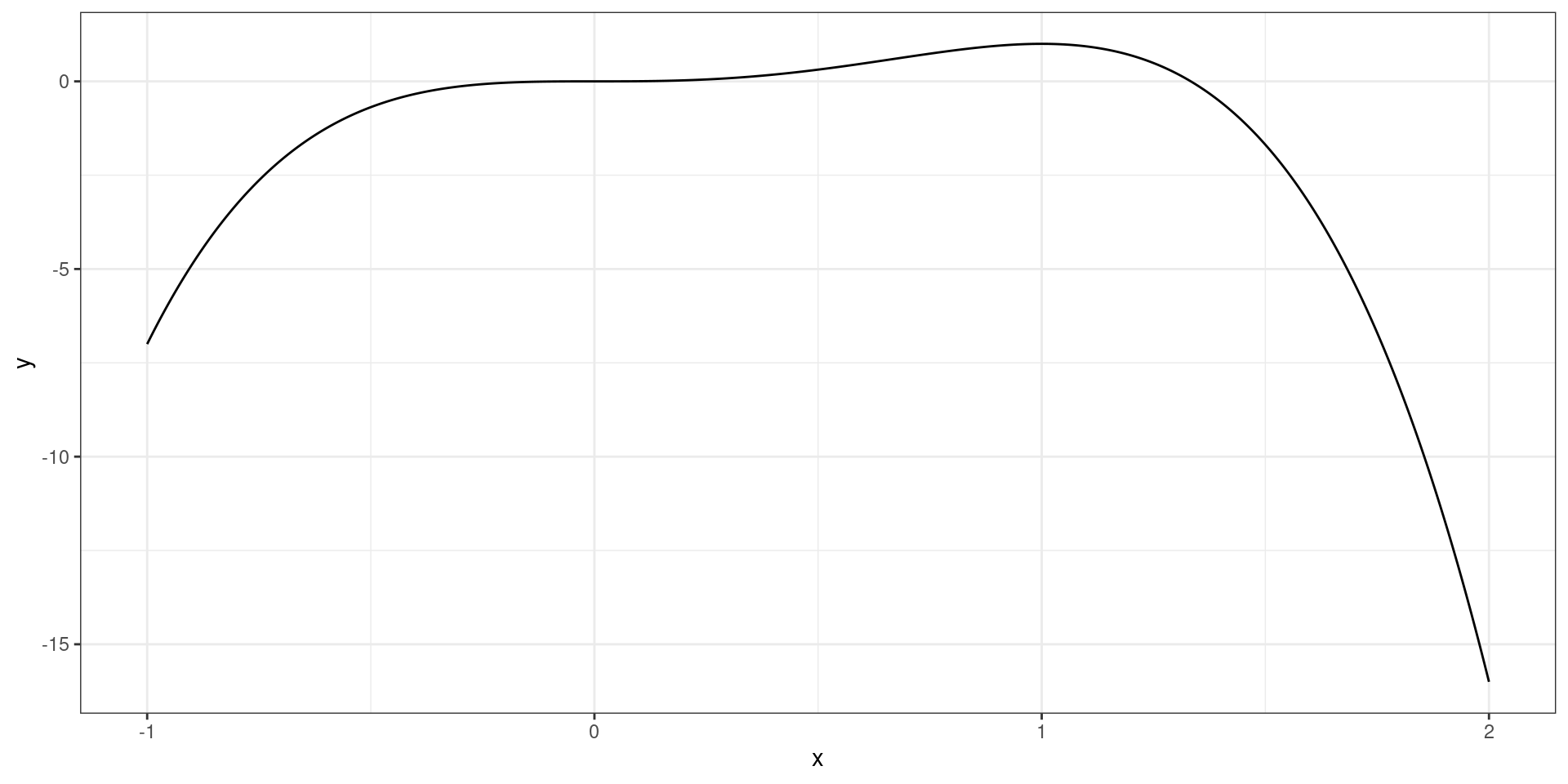

\[ h(x) = -3x^4+4x^3 \]

Code
ff <- function(x){
  -3*x^4+4*x^3
}
x <- seq(-1, 2, length.out = 1000)
y <- ff(x)
tibble(x, y) |>
  ggplot(aes(x, y)) +
  geom_line() + theme_bw()

Optimization

Optimization is the method to find the values of a variable that will maximize a function of interest (\(h\)).

Numerical Optimization Techniques

  • Newton-Raphson Method
  • Gradient Descent
  • Quasi Newton-Raphson Method

Monte Carlo Optimization

Monte Carlo Optimization technique a brute force method that will simulate a high number of random values, evaluate them with \(h(x)\), and identify which value provides a the maximum value.

Optimization

Code
ff <- function(x){
  y <- -3*x^4+4*x^3
  return(y)
}
x <- seq(-1, 2, length.out = 1000)
y <- ff(x)
tibble(x, y) |>
  ggplot(aes(x, y)) +
  geom_line() + theme_bw()

Numerical Optimization

Code
ff <- function(x){
  y <- -3*x^4+4*x^3
  return(-y)
}

optimize(ff, c(-5,5))
#> $minimum
#> [1] 1
#>
#> $objective
#> [1] -1

Monte Carlo Methods

Code
x <- runif(1000000, -5,5)
y <- ff(x)
which.min(y)
#> [1] 361836
Code
x[which.min(y)]
#> [1] 0.9999983

Finding the maximum the Gaussian function.

\[ f(x) = e^{-(x-4)^2/10} \]

Minimizing SSE

Given a data set \((X_i, Y_i)\) for \(i = 1, \ldots, n\):

Code
x <- rnorm(1000)
y <- 8 -4 * x + rnorm(1000, sd = 0.5)

Minimizing SSE

Find the values \(\beta_0\) and \(\beta_1\) that minimizes the following formula:

\[ SSE = \sum^n_{i=1}\{Y_i - (\beta_0 + \beta_1 X_i)\}^2 \]

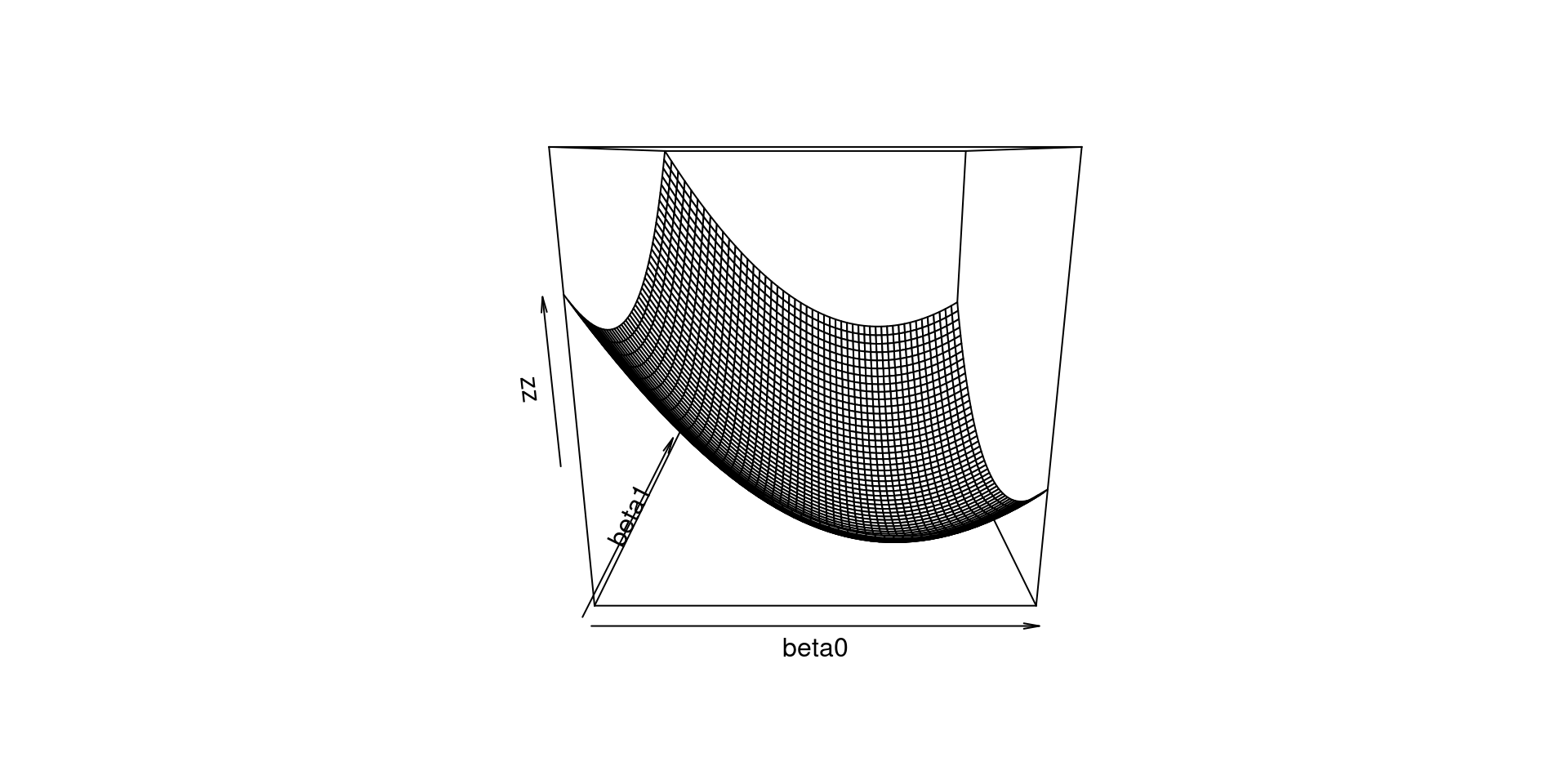

Minimizing SSE

Code
sse <- function(beta, x, y){
  sum((y - (beta[1] + beta[2] * x))^2)
}
beta0 <- seq(-20, 20, length.out = 50)
beta1 <- seq(-20, 20, length.out = 50)
zz <- matrix(nrow = 50, ncol = 50)
for (i in seq_along(beta0)){
  for(ii in seq_along(beta1)){
    zz[i, ii] <- sse(c(beta0[i], beta1[ii]), x, y)
  }
}
persp(beta0, beta1, zz)

Minimizing SSE

Code
sse <- function(beta, x, y){
  sum((y - (beta[1] + beta[2] * x))^2)
}

uu <- sapply(1:1000000, \(x) runif(2, -10, 10))
val <- apply(uu, 2, sse, x = x, y = y)
which.min(val)
#> [1] 629279
Code
uu[,which.min(val)]
#> [1]  8.016216 -4.003703

Toy Collector’s Problem

  • Monte Carlo Integration

  • Importance Sampling

  • Monte Carlo Optimization

  • Toy Collector’s Problem

Toy Collector’s Problem

There is a cereal company that is planning to give away 15 toys in their cereal boxes where the the probability of getting a certain toy from a box is 1/15. Assuming that you only get one toy from each cereal box, what is the number of cereal boxes you will need to buy to obtain all 15 toys?

Geometric Distribution

The geometric distribution is used to determine the number of failures needed to get the first success.

A success is getting a new toy.

Collecting Toys

The probability of getting a new toy given we have i toys goes as follows: \[P(New Toy|i)= \frac{15-i}{15}.\]

If we have 0 toys \((i=0)\) the probability of getting a new toy after opening 1 box is 1 \[P(New Toy|0)=\frac{15-0}{15}=1.\]

Getting 8th Toy

Now if we have 7 toys, the probability of getting a new toy goes as follows: \[P(New Toy|7)=\frac{15-7}{15}=\frac{8}{15}=0.533.\]

To get a new toy, we would have to open at least \(\frac{1}{0.533}=1.875\) boxes.

Getting 15th Toy

Now if we had 14 toys already, we would need to open at least 15 boxes to get that.

\[P(New Toy|14)=\frac{15-14}{15}=\frac{1}{15}=0.067\] So the number of boxes to open to get the last toy is \(\frac{1}{0.067}=\frac{15}{1}=15\)

Average number of boxes

\[\frac{15}{15}+\frac{15}{14}+\frac{15}{13}+...+\frac{15}{2}+\frac{15}{1} \approx 49.77.\]

Monte Carlo Methods

Monte Carlo can be used to estimate the expected number of boxes you will need to buy to obtain all 15 toys.

Think about having \(n\) shoppers going out an buying as many boxes needed to buy to obtain all 15 toys. Then you compute the mean and standard error for your sample.

Monte Carlo Methods

Code
mc_shopper<-function(n, x, p){
  k <- vector(mode = "numeric", length = n)
  for (i in 1:n){
    j <- 1
    a <- sample(x, 1, prob = p)
    while(length(unique(a)) < 15){
      b <- sample(x, 1, prob = p)
      a <- c(a, b)
      j <- j + 1
    }
    k[i] <- j
  }
  m <- mean(k)
  se <- sd(k)/sqrt(n)
  ci <- m + c(-1, 1) * 1.96 * se
  return(list(mean = m, se = se, ci_95 = ci))
}

Monte Carlo Methods

Code
x <- 1:15
p <- rep(1/15, times = 15)
mc_shopper(10000, x, p)
#> $mean
#> [1] 49.9947
#>
#> $se
#> [1] 0.173234
#>
#> $ci_95
#> [1] 49.65516 50.33424

Toy Collector Problem 2

There is a cereal company that is planning to give away 15 toys in their cereal boxes. The probability for each toy is no longer equal, the probability for each toy goes as follows:

Figure 1 2 3 4 5 6 7 8
Probability .2 .1 .1 .1 .1 .1 .05 .05
Figure 9 10 11 12 13 14 15
Probability .05 .05 .03 .02 .02 .02 .01

Assuming that you only get one toy from each cereal box, what is the number of cereal boxes you will need to get to obtain all 15 toys?
