Simulation Studies

Zero Models

R Packages

library(extraDistr)
library(mvtnorm)
library(splines2)
library(tidyverse)
library(brms)
theme_set(theme_bw())

Zero-Inflated Models

Zero-Inflated Models
Hurdle Models
Cox Proportional Hazard Models

Zero-Inflated Models

Zero-inflated models is a mixture model where random variables are generated from 2 or more distributions.

On distribution that states the value came from 2 possible distributions. All other values could have come from a common distribution.

Mixture Models

\[ f(x) = \pi g(x) + (1-\pi)h(x) \]

\(\pi\in(0,1)\)

Zero-Inflated Distribution

A zero-inflated distribution is a mixture model, where the observed value of 0 can com from 2 distributions.

This forces the data to produce more 0’s than from a standard distribution.

Zero-Inflated

\[ P(x=0) = \left\{\begin{array}{cc} \pi + (1-\pi)g(x) & X=0 \\ (1-\pi)g(x) & otherwise \end{array} \right. \]

Modelling 0

When modeling a ZI-model, we need to determine where the 0 came from.

This is modeled using a Binary (logistic) GLM.

ZI-Poisson

If you believe that the data comes from a Poisson distribution, but there is an abnormal amount of 0’s, It may indicate that 0 may come from 2 sources of distributions.

Hence the Zero-inflated Poison model may be appropriate.

Simulating ZI-Poisson

Zero

\[ g(\pi) = -1.85 + 1.1 X_1 \]

Poisson

\[ h(\lambda) = 4-2X_2 \]

Simulating ZI-Poisson

Code

n <- 10000
x1 <- rnorm(n, mean = 2)
x2 <- rnorm(n, mean = 2.5)
eta <- boot::inv.logit(-1.85 + 1.1 * x1)
zi <- rbinom(n, size = 1, prob = eta)
mu <- exp(4 - 2 * x2)
p <- rpois(n, mu)
y <- (zi == 0) * p

Bayesian Model

Code

brm(bf(y ~ x2,
       zi ~ x1),
    data = tibble(y, x1, x2),
    family = zero_inflated_poisson(),
    cores = 4)

ZI-Negative Binomial

If you believe that the data comes from a negative binomial distribution, but there is an abnormal amount of 0’s, It may indicate that 0 may come from 2 sources of distributions.

Hence the Zero-inflated Poison model may be appropriate.

Simulating ZI-Negative Binomial

Zero

\[ g(\pi) = -1.85 + 1.1 X_1 \]

Negative Binomial

\[ h(\mu) = -0.85-1.3X_2 \]

Simulating ZI-Negative Binomial

Code

n <- 10000
x1 <- rnorm(n, mean = 2)
x2 <- rnorm(n)
eta <- boot::inv.logit(-1.85 + 1.1 * x1)
zi <- rbinom(n, size = 1, prob = eta)
mu <- exp(-0.85 + 1.3 * x2)
p <- rnbinom(n, mu = mu, size = 0.5)
y <- (zi == 0) * p

Bayesian Model

Code

brm(bf(y ~ x2,
       zi ~ x1),
    data = tibble(y, x1, x2),
    family = zero_inflated_negbinomial(),
    cores = 4)

Hurdle Models

Zero-Inflated Models
Hurdle Models
Cox Proportional Hazard Models

Hurdle Models

Hurdle models are used to model data where the value 0 is believed to come from one distribution, and all the other values come from a separate distribution.

It can be thought of as data points had to overcome a hurdle to escape 0 to obtain a different value.

Hurdle Models

\[ P(x=0) = \left\{\begin{array}{cc} \pi & X=0 \\ (1-\pi)g(x) & otherwise \end{array} \right. \]

ZI vs Hurdle

Hurdle Models

\[ \begin{array}{c} \pi \\ (1-\pi)g(x) \end{array} \]

ZI Models

\[ \begin{array}{cc} \pi + (1-\pi)g(x) & X=0 \\ (1-\pi)g(x) & otherwise \end{array} \]

Modelling 0

When modeling a ZI-model, we need to determine where the 0 came from.

This is modeled using a Binary (logistic) GLM.

Hurdle Models

Poisson
Negative Binomial Model
Log-Normal
Gamma

Hurdle Poisson and Negative Binomial

Both Negative Binomial and Poisson Models can generate a 0 value.

Therefore, these distributions are truncated at 1 to be utilized in a hurdle model.

Simulating Hurdle Poisson

Zero

\[ g(\pi) = 1.1 + 3.1 X \]

Truncated-Poisson

\[ h(\lambda) = 0.75+1.3X \]

Hurdle Poisson Model

Code

n <- 10000
x <- rnorm(n)
eta <- boot::inv.logit(1.1 + 3.1 * x)
zi <- rbinom(n, 1, eta)
mu <- exp(0.75 + 1.3 * x)
p <- rtpois(n, lambda = mu, a = 0)
y <- (zi == 0) * p

Bayesian Model

Code

brm(bf(y ~ x,
       hu ~ x),
    data = tibble(y, x),
    family = hurdle_poisson(),
    cores = 4)

Simulating Hurdle Gamma

Zero

\[ g(\pi) = 1.1 + 3.1 X \]

Poisson

\[ h(\lambda) = 0.75+1.3X \]

Hurdle Gamma Model

Code

n <- 10000
x <- rnorm(n, mean  = -0.25)
eta <- boot::inv.logit(1.1 + 3.1 * x)
zi <- rbinom(n, 1, eta)
mu <- exp(0.75 + 1.3 * x)
p <- rgamma(n, shape = 2, scale = mu / 2)
y <- (zi == 0) * p

Bayesian model

Code

brm(bf(y ~ x,
       hu ~ x),
    data = tibble(y, x),
    family = hurdle_gamma(),
    cores = 4)

Cox Proportional Hazard Models

Zero-Inflated Models
Hurdle Models
Cox Proportional Hazard Models

Cox Proportional Hazard Models

Cox proportional hazard model was used to model the association between a set of predictors and a time-to-event, in the presence of an independent censoring mechanism.

Data Type

Data is typically recorded as time-to-event data
For biomedical studies, researchers are interested in time from diagnosis to death, known as time-to-death

Censoring

Censoring is a mechanism where we do not observe the true time-to-event
Not all the time is observed
Three common types of censoring mechanisms: Right, Left, and Interval

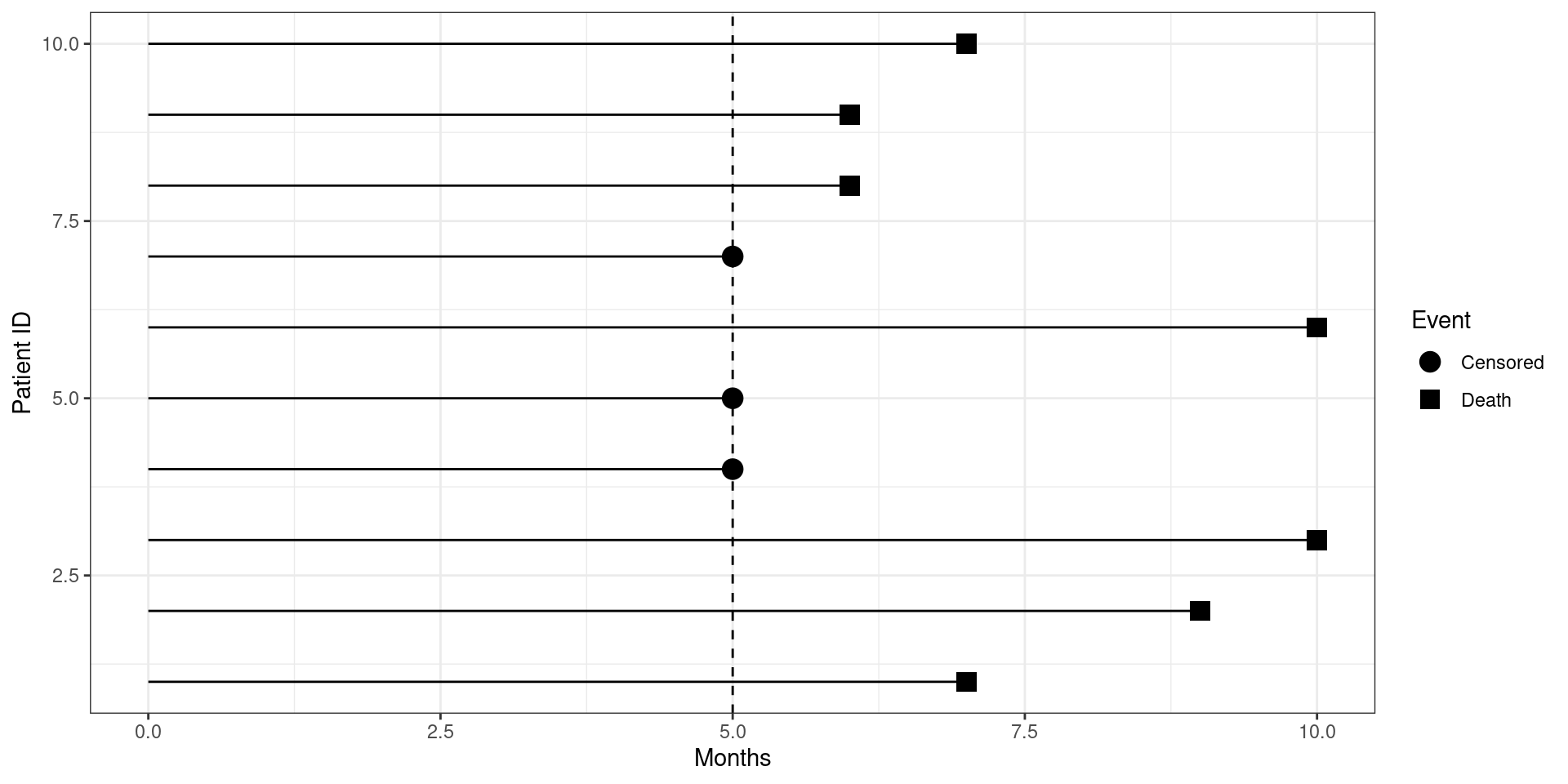

Left Censoring

Code

dat <- data.frame(ID = 1:10,
                  t1 = c(7, 9, 10, 5, 5, 10, 5, 6, 6, 7) ,
                  censored = c(1, 1, 1, 0, 0, 1, 0, 1, 1, 1))
ggplot(dat, aes(x = ID, y = t1, shape = ifelse(censored, "Death", "Censored"))) + geom_point(size = 4) +
    geom_linerange(aes(ymin = 0, ymax = t1)) +
    geom_hline(yintercept = 5, lty = 2) +
    coord_flip() +
    scale_shape_manual(name = "Event", values = c(19, 15)) +
    # ggtitle("Left Censoring") +
    xlab("Patient ID") +  ylab("Months") +
    theme_bw()

Data Construction

\(T_i^*\): True time-to-event
\(C_i\): Censoring Time
\(T_i=\min(T_i^*,C_i)\): Observed time-to-event
\(\delta_i = I(T_i^*<C_i)\): Event indicator

Hazard Function

\[ h(t) = \lim_{\Delta t \rightarrow 0} \frac{P(t \le T^* < t + \Delta t \mid T^* \ge t)}{\Delta t} \]

Proportional Hazard Model

\[ h(t \mid \boldsymbol X) = h_0(t) \exp(\boldsymbol\beta^\mathrm T\boldsymbol X) \] - \(h_0(t)\): baseline hazard function

\(\boldsymbol\beta\): regression coefficients
\(\boldsymbol X\): predictor variables

Simulated Model

\[ h(t \mid \boldsymbol X) = 1.5t^{0.5} \exp(-1.5X_1 + 2.3X_2) \] \[ C_i\sim Exp(3.5) \]

Simulating Model

Code

n <- 10000
tdf <- tibble()
for (i in 1:10000){
  phi <- 1.5
  x.vec <- c(mvtnorm::rmvnorm(1,c(0,1.5),diag(c(1,.5))))
  invS = function(t, u){
    h = function(s)
    {
      phi * s^(phi - 1) * exp(-x.vec[1] * 1.5 + x.vec[2] * 2.3)
    }

    integrate(h, lower = 0, upper = t, subdivisions = 2000)$value + log(u)
  }
  u = runif(1)
  Up <- 1
  Root <- try(uniroot(invS, interval = c(0, Up), u = u)$root, TRUE)
  while(inherits(Root, "try-error") | Root == 0) {
    Up <- Up + 2
    Root <- try(uniroot(invS, interval = c(0, Up), u = u)$root, TRUE)
    if (Root == 0) {u <- runif(1)}
  }
  trueTimes <- if (!inherits(Root, "try-error")) Root else NA

  rateC = 3.5
  Ctimes = rexp(1, rate = rateC)

  event.times = pmin(trueTimes, Ctimes,1)
  delta_i = as.numeric(trueTimes <= min(Ctimes,1))
  wdf <- tibble(x1 = x.vec[1], x2 = x.vec[2], time = event.times, censor = delta_i)
  tdf <- bind_rows(tdf, wdf)
}

Bayesian Model

Code

brm(time | cens(1-censor) ~ x1 + x2,
    data = tdf,
    family = cox(),
    cores = 4)
